S-MODE

Sub-Mesoscale Ocean Dynamics Experiment

The Sub-Mesoscale Ocean Dynamics Experiment (S-MODE) project tested the hypothesis that submesoscale ocean dynamics, i.e. processes with scales of 1-10 km, make important contributions to vertical exchange of physical, chemical, and biological variables in the upper ocean.

This requires coordinated application of newly-developed in situ and remote sensing techniques, and providing an unprecedented view of the physics of submesoscale eddies and fronts and their effects on vertical transport in the upper ocean. S-MODE used measurements from a novel combination of platforms and instruments, along with data analysis and modeling, to test the hypothesis.

Principal Investigator

Tom Farrar

Data Centers

PO.DAAC

Funding Programs

EVS-3

A major difficulty in simulating Earth’s climate system is that there are interactions across scales, so that the large time and space scales can be sensitive to processes on small scales. As the computational resolution of global ocean models has improved, scientists have begun to suspect that kilometer-scale eddies and fronts, called “submesoscale” variability, have a net effect on ocean-atmosphere heat exchange that is larger than the heating from the greenhouse effect.

State-of-the-art computer models agree in predicting that these eddies have important long-term effects on the upper-ocean, but their predictions are sensitive to relatively small details in model physics and implementation. The resolution and detail of these simulations has surpassed our ability to ‘ground truth’ them with spaceborne or in situ sensors. There is thus a pressing need for a comprehensive benchmark data set on these submesoscale motions to address this important source of uncertainty in simulating the global ocean.

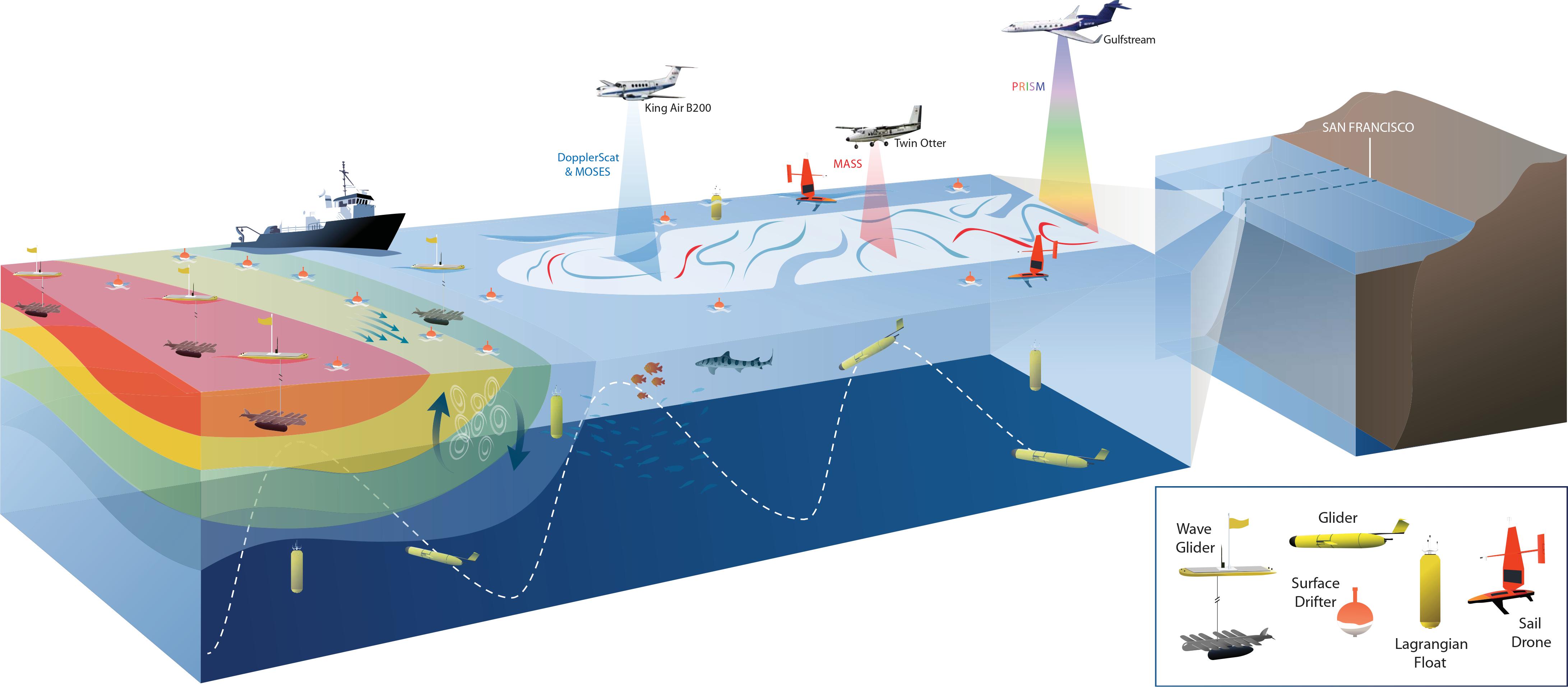

Image Caption

Conceptual schematic for the S-MODE project.

Study DatesOct. 19, 2021 - May 2, 2023
Season of StudyBoreal fall, boreal spring
RegionCentered approximately 300 km offshore of San Francisco, California
Spatial Bounds

N: 40°N

S: 35°N

W: 130°W

E: 120°W

Focus Areas

Global Water and Energy Cycle

Weather

Geophysical ConceptsOcean Properties and Processes
Scientific Topics

Submesoscale Ocean Dynamics

Vertical Transport

Eddies

Ocean-Atmosphere Interactions

Ocean Properties

The S-MODE study domain is off the west coast of northern California, USA, marked by the green polygon in the image below.

Image Caption

S-MODE ops area.

The following resources provide additional information about S-MODE.
